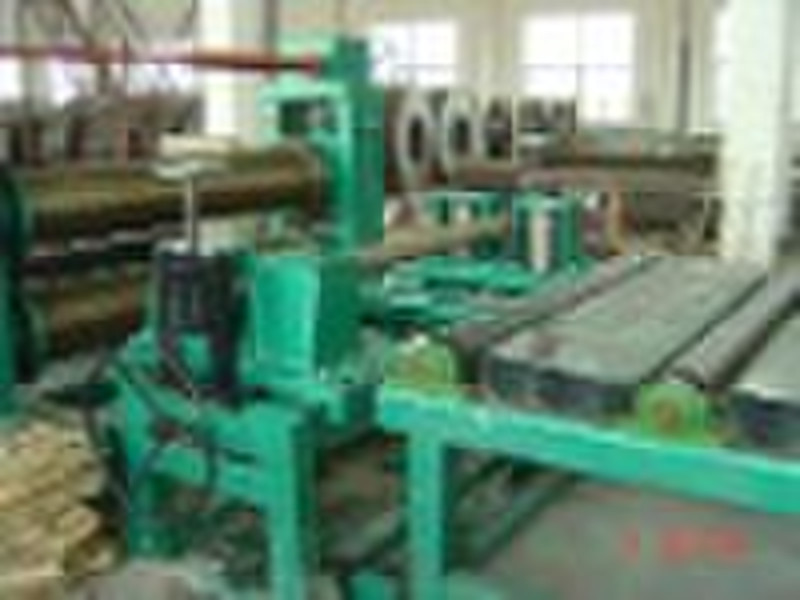

slitting line
Selina Lee
Contact person
Basic Information
slitting line Technology Capability:1.1 Raw material: low carbon and alloy steel strip (σs≤235Mpa, σb≤500Mpa)1.2 Specification of raw material:Thickness of steel strip: 1.56.0mmWidth of steel strip: 8001500mmInner diameter of strip coil: max φ580 610Outer diameter of strip coil: max φ1000 1800mmMax quantity of strip coil: 20T1.3 Production detail:Inner diameter of strip coil: max φ610mmOuter diameter of strip coil: max φ1800mm1.4 Speed: max 60m/min1.5 Cuts: 3-10 cuts1.6 Input Power: 380Volt, 3 phase, 4 lines, 50Hz. 1.7 Feeding Direction: Left side or right side.slitting line The technical flow of mill line:Storage rack, Coil car, Uncoiler, shovel board device, Flattening, Shear the ends, Centering device, Disc shear, Two side recoiled, Accumulator, Locating expanding set, Recoiler, Active support, separate pressure lever, coil car
Delivery terms and packaging
Packaging Detail: wooden, and plastic Delivery Detail: three months
Port: Tianjin Port, china
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
